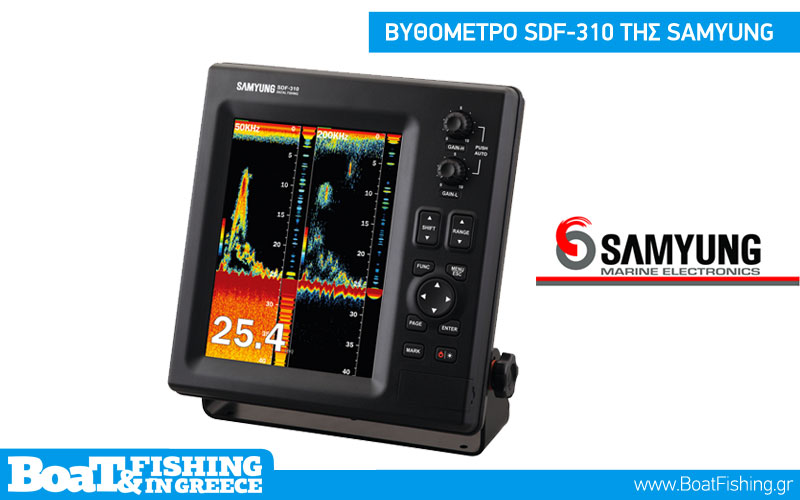

Βυθόµετρο SDF-310 της SAMYUNG
Η εταιρεία SAMYUNG µας παρουσιάζει το νέο της µοντέλο ανιχνευτή ψαριών, τον SDF-310. Παρακάτω, παραθέτονται αρκετά τεχνικά χαρακτηριστικά του µοντέλου, που σίγουρα θα µας εντυπωσιάσουν.
Τεχνικά χαρακτηριστικά βυθοµέτρου SDF-310
• Easy and quick gain setting control
– When gain changes are applied, the previous echoes are applied at the same as the new echoes
• Allows to dispaly weakly recorded fish group
– 30% increase of transmitting speed allows more detailed fish school to be displayed
– Fine tuning over all frequencies including low and high transmitting frequencies
• Progressed image processing technology
– Express image with various filtering process : Interference removal, noise removal, clutter, color removal and digital filter area setting
• Selectable display color
– Use may select preferable color display
• Display area detected on A-SCOPE
– Display area of seabed transmitted by the beam angle from transducer on A-scope to increase ease of work
– Beam angle may vary depending on the frequency of the transducer and the installation method. The data displayed on the euipment should be used for reference only
• Multi-frequency and the output
– The selection of transducers with various frequencies and output is available
– 28/38/50/68/82/88/107/150/200 kHz
– Dual frequencies
– Transmission output can be selected from 1/1.2/1.5/2.5/3KW
– Connectable with past transducers
• Display white line
– White line applied to easily discern seabed from the fish school or reef
* Display the strong signal from seabed in the white line in order to easily distinguish between fish group and seabed
• Digital filter technology
– Digital filter technology applied to display the weakest echoes from small fish and reduce noise at the same time
Προδιαγραφες SDF-310
• General
– Operating Frequencies: Dual Frequencies(50/200 kHz)
– Output Power: 1/1.2/1.5/2/2.5 /3 kW
– Power Reduction: 10 ~ 100 % (in 10 % step)
– User Frequency: 28/38/50/55/68/75/82/88/95/100/107/150/200 kHz(2 Frequencies selection)
• Display
– Display: 10.4” color LED (SVGA: 800 x 600)
– Color: 8/16/32/64 color
– Brightness: 500 cd/m2
– Tx Rate: 20 ~ 3000/min
– Pulselength: Standard/Short/Middle/Long
– Rx Band: Narrow/Standard/Wide
– Amplifier: High dynamic range
– Ranges: 3 ~ 3000 m
– Shift : 0 ~ 2000 m
– Display Mode: Single(LF/HF), Dual, Single+Zoom, Custom modes 1,2, Zoom mode(Bottom lock, Bottom zoom, Marker zoom), MIX mode, Nav data, A-scope
– Picture Advance Direction : Left, Right
– Picture Advance Speed : Stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1
– Alarms: Audio, Fish, Depth, Water temperature, Nav data
– Others: Auto Mode, Color Erase, Interference, TVG, Clutter, Temp Graph, A-scope, White Marke
• ENVIRONMENTAL CONDITIONS
– Operating Temperature : -15℃ ~ +55 ℃
• DATA INTERFACE
– Data Interface : NMEA 0183
• POWER SUPPLY
– Power Supply : 12/24 VDC, 50W max.
• EQUIPMENT LIST
– Standard : Display Unit, Transducer(1/1.2/1.5/2/2.5/3KW), Installation Materials and Standard Spare Parts
– Option : Speed/Temperature Sensor, Temperature Sensor NMEA Cable, Rectifier
